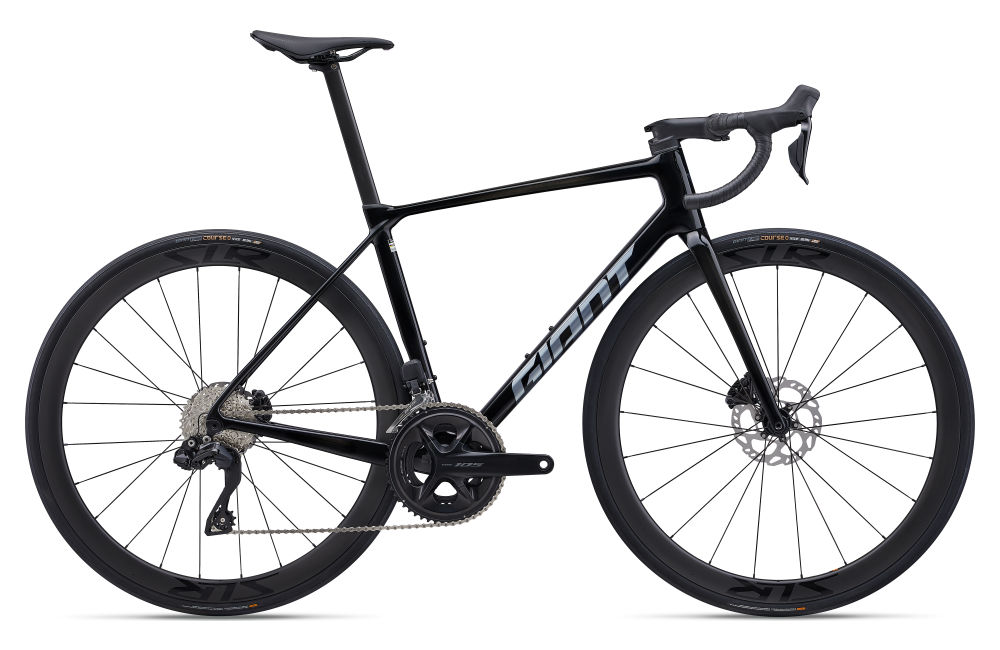

2025 Giant TCR Pro 1

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Specifications

• Sizes
  S, M, ML, L, XL
• Colours
  Gloss Carbon/Polished Foil
• Frame
  Advanced-Grade Composite 12x142mm thru-axle, Disc
• Fork
  Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Handlebar
  Giant Contact SL, 10.5 degree flare
• Stem
  Giant Contact SL Aerolight
• Seatpost
  Giant Variant, composite, -5/+15mm offset
• Saddle
  Giant Fleet SL 7mm SST Rail With Giant ParticleFlow technology
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano 105 Di2 2×12
• Front Derailleur
  Shimano 105 Di2
• Rear Derailleur
  Shimano 105 Di2
• Brakes
  Shimano 105 hydraulic disc, RT70 160/140mm rotors
• Brake Levers
  Shimano 105 hydraulic disc
• Cassette
  Shimano 105, 11×34
• Chain
  KMC X12L-1
• Crankset
  Shimano 105, 36/52 with Giant Power Pro power meter
• Bottom Bracket
  Shimano, press fit
• Rims
  New Giant SLR 1 40 Carbon Disc Wheel System with GIANT patented DBL (Dynamic Balanced Lacing) technology
• Hubs
  [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  Sapim CX-Ray
• Tyres
  Giant Gavia COURSE 0 Tubeless, 700x25C(28mm effective), 170 TPI , Folding
• Extras
  Factory tubeless set up, out front computer mount
• Max Tire Clearance
  33mm
