Description

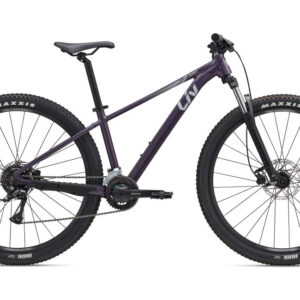

The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Key Performance Factors
Modern MTB Design
Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable
The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Specifications
-
Sizes27.5: XS, S 29: S, M,
-
ColoursGloss Black/Golden Wheat, Satin Nordic Breeze/Frost Silver
-
FrameALUXX-grade aluminium, disc
-
ForkSR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) S-L:100mm travel (29)
-
ShockN/A
-
HandlebarGiant Connect Trail, 31.8mm XS&S: 690mm (27.5) S-L: 750mm (29)
-
StemGiant Sport, 7-degree rise
-
SeatpostGiant Sport, 30.9mm
-
SaddleLiv ErgoContact Trail
-
PedalsMTB caged
-
ShiftersmicroSHIFT Acolyte, 1×8
-
Front DerailleurN/A
-
Rear DerailleurmicroSHIFT Acolyte
-
BrakesTektro 172, mechanical, Tektro rotors [F]160mm, [R]160mm
-
Brake LeversTektro TBK 172, mechanical
-
CassettemicroSHIFT, 12×46
-
ChainKMC 8.3
-
CranksetProWheel Forged, 33t (27.5) or 30t (29)
-
Bottom Bracketcartridge
-
RimsGiant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
-
HubsAlloy, sealed bearing, [F] 9×100 QR, [R] 12×142 thru-axle
-
Spokesstainless, 14g
-
TyresMaxxis Ikon 27.5×2.2 or Maxxis Ikon 29×2.2, wire bead
-
Extras2.4″ max tyre size
All specifications listed are subject to change without notice.
Highlights
Sizing Guide and Geometry
Sizing to be used as a reference only.
-
- S (29″)
- 158 cm
169 cm
-
- M (29″)
- 164 cm 175 cm
-
- L (29″)
- 170 cm 181 cm
-
- XS (27.5″)
- 150 cm 163 cm
-
- S (27.5″)
- 158 cm 169 cm
| S (29″) | M (29″) | L (29″) | XS (27.5″) | S (27.5″) | ||
| A | Seat Tube Length (MM) | 380 | 410 | 450 | 330 | 365 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (MM) | 571 | 599 | 610 | 538 | 558 |
| D | Head Tube Length (MM) | 90 | 100 | 105 | 90 | 95 |
| E | Head Tube Angle | 67.5° | 67.5° | 68.5° | 67.0° | 67.0° |
| F | Fork Rake (MM) | 44 | 44 | 51 | 44 | 44 |
| G | Trail (MM) | 108.9 | 108.9 | 94.3 | 105.2 | 105.2 |
| H | Wheelbase (MM) | 1129 | 1158 | 1160 | 1080 | 1101 |
| I | Chain Stay Length (MM) | 455 | 455 | 455 | 440 | 440 |
| J | Bottom Bracket Drop (MM) | 55 | 55 | 55 | 45 | 45 |
| K | Stack (MM) | 593 | 602 | 610 | 548 | 553 |
| L | Reach (MM) | 407 | 432 | 435 | 381 | 400 |
| M | Stand Over Height (MM) | 689 | 708 | 757 | 680 | 689 |
| N | Handlebar Width (MM) | 750 | 750 | 750 | 690 | 690 |
| O | Stem Length (MM) | 40 | 50 | 50 | 40 | 40 |
| P | Crank Length (MM) | 170 | 170 | 175 | 165 | 165 |
| Q | Wheel Size | 29 | 29 | 29 | 27 | 27 |
| Q | Wheel Size | 29 | 29 | 29 | 27 | 27 |
