Description
Highlights:
- Comfort geometry lightweight aluminium frame
- Suspension fork
- 21 gears
- Shimano mechanical disc brakes
- Large volume tyres for comfort
- Multiple fixing points for rear rack and mudguards

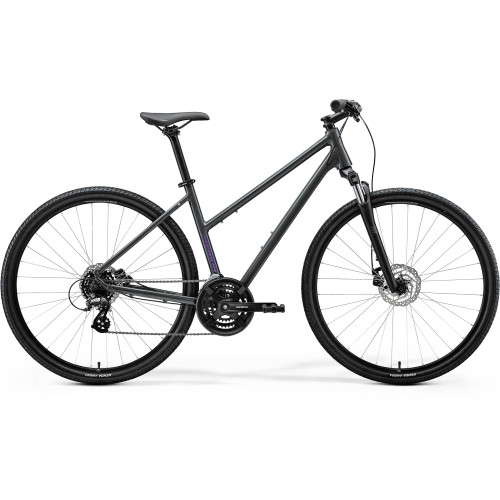

A perennial best seller, versatile hybrid with 21 gears, suspension fork and mechanical disc brakes. Shimano BB, chainset and hubs for greater longevity.
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Specification
Frame
- TFS IV – 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork
- SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
Gears
- 21
Shifters
- Front: Shimano ST-EF500-L, Rear: Shimano ST-EF500-7R
Front Derailleur
- Shimano FD-TY510-3
Rear Derailleur
- Shimano RD-M310-7
Bottom Bracket
- Shimano UN101 LL123
Chain
- SunRace CNM 84
Chainset
- Shimano TY301; 48-38-28 tooth chainset; material: aluminium; Crank length: (XXS-M) – 170mm, (M/L up) – 175mm
Cassette
- Shimano CS-HG210-7; 12-32 teeth; 7 speed
Front Brake
- Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
Rear Brake
- Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
Grip
- Merida EC
Handlebar
- Merida CC; material: steel; 620mm wide; 30mm rise
Stem
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Head Set
- Merida M2345
Pedal
- VP VPE-891
Saddle
- Merida Cross Sport
Seat Post
- Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Wheel Size
- 700c
Rims
- Merida Comp TK; 17mm inner rim width; material: aluminium
Spokes
- Steel UCP
Front Hub
- Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub
- Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Tyre
- Kenda Ambra K1278; 700x45C; wired
Rear Tyre
- Kenda Ambra K1278; 700x45C; wired
Colour
- Glossy Cool Grey (Purple)
Season
- 2026
Reviews
There are no reviews yet.
