Description

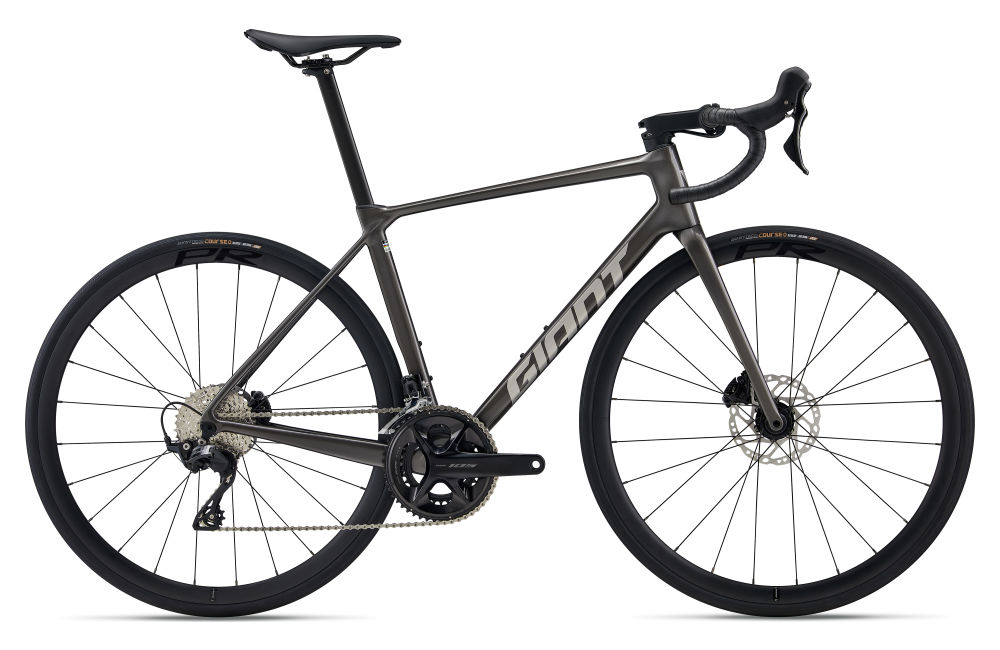

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.
Key Performance Factors
Class-leading efficiency
A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.
Specifications
-
SizesXS, S, M, M/L, L, XL
-
ColoursStealth Chrome, Capri Blue
-
FrameAdvanced-grade Composite, 12x142mm thru-axle, disc
-
ForkAdvanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
-
ShockN/A
-
HandlebarGiant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
-
StemGiant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
-
SeatpostGiant Variant, composite, -5/+15mm offset
-
SaddleGiant Approach
-
ShiftersShimano 105
-
Front DerailleurShimano 105
-
Rear DerailleurShimano 105
-
BrakesShimano 105 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm
-
Brake LeversShimano 105
-
CassetteShimano 105, 12-speed, 11×34
-
ChainKMC X12L-1
-
CranksetShimano 105, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
-
Bottom BracketShimano, press fit
-
RimsGiant P-R1 Disc wheelset, alloy, [F]30mm, [R]30mm
-
HubsGiant alloy, 12mm thru-axle
-
Spokesstainless
-
TyresGiant Gavia Course 0, tubeless, 700x28c (28mm), folding
-
Extrastubeless prepared, 33mm max tire size
-
Max Tire Clearance33mm
Sizing Guide and Geometry
-
- XS
- 157 cm
169 cm
-
- S
- 165 cm 175 cm
-
- M
- 171 cm 181 cm
-
- ML
- 177 cm 187 cm
-
- L
- 183 cm 193 cm
-
- XL
- 189 cm 199 cm
| XS | S | M | ML | L | XL | ||
| A | Seat Tube Length (MM) | 425 | 445 | 470 | 500 | 530 | 560 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (MM) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (MM) | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (MM) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail (MM) | 72.1 | 64.0 | 59.2 | 59.2 | 59.2 | 59.2 |
| H | Wheelbase (MM) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (MM) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (MM) | 72 | 70 | 70 | 67 | 67 | 67 |
| K | Stack (MM) | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach (MM) | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (MM) | 719 | 734 | 752 | 768 | 786 | 803 |
| N | Handlebar Width (MM) | 380 | 380 | 400 | 400 | 420 | 420 |
| O | Stem Length (MM) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (MM) | 165 | 165 | 170 | 170 | 172 | 172 |
